Molecular dynamics simulation of pyrolysis in polyethylene cable sheaths under electric field

Power cables are extensively utilized in industry, primarily for power transmission and transportation. However, during electrical energy transport, cables are prone to various faults such as short-circuiting, overloading, and poor contact. These issues can lead to the burning of cables and potentially cause cable fires. From the moment a cable fails to the onset of burning, the cable sheath undergoes pyrolysis due to rising temperatures. During this pyrolysis process, the sheath thermally decomposes, producing combustible gases that further facilitate cable combustion^[1]. Fires can be pre-warned by detecting pyrolysis decomposition products, which are characteristic signals of cable operation and fire^[2−6]. Therefore, studying the pyrolysis characteristics of cable sheathing under an electric field is crucial for understanding and preventing cable fires.

Thermogravimetry (TG) is an experimental technique used to study the pyrolysis properties of cables, effectively representing the mass loss during the thermal decomposition of a sample. Based on TG data, researchers employ model-free methods such as the Ozawa method, the KAS method, and the Starink method to calculate the apparent activation energy of the cable sheath^[7−10]. This apparent activation energy indicates the thermal stability of the sheath. However, analyzing the pyrolysis products solely through the mass change of the cable sheath during pyrolysis is insufficient. Existing studies suggest that gas chromatography-mass spectrometry (GC-MS) provides a more accurate analysis of pyrolysis products. For example, Chen et al. investigated the main volatile products of iste cable hoses using TG-MS and identified the order of the maximum amounts of four volatile products^[11]. Similarly, Qin et al. analyzed the thermal degradation of polystyrene and polypropylene using coupled TG-GC and TG-GC/MS, finding that the initial pyrolysis products mainly included styrene, benzene, toluene, and small amounts of C1−C4 aliphatic hydrocarbons^[12]. Most existing studies on cable sheath pyrolysis focus on the macroscopic characteristics of the process. However, there is a lack of detailed research on the specific pyrolysis processes of sheath materials, the primary radical reactions, and the effects of an electric field on pyrolysis characteristics. Therefore, it is crucial to investigate the chemical mechanisms of cable sheath pyrolysis, the principal reaction pathways, and the influence of the electric field on these processes.

Molecular dynamics (MD) simulation is a numerical method used to solve the equations of motion for molecular systems, allowing for the investigation of their structure and properties. However, traditional MD cannot describe the bond-breaking and formation processes involved in chemical reactions^[13]. The reactive force field (ReaxFF) developed by van Duin et al. addresses this limitation^[14]. ReaxFF's force field parameters are derived from extensive geometric and energetic data, enabling it to characterize complex chemical reactions across various systems^[15]. Numerous studies have demonstrated the accuracy of ReaxFF-MD in fields such as catalysis^[16−18], coal chemistry^[19−21], and nitrogen chemistry^[22−24]. Some scholars employ the ReaxFF approach to investigate the pyrolysis characteristics and reaction mechanisms of organic matter. For instance, Pu et al. used ReaxFF-MD calculations to study the pyrolysis mechanisms of pure HFO-1234yf and R32. Their results showed that R32 inhibits the decomposition of HFO-1234yf at 2,600–2,800 K but promotes its decomposition at temperatures above 3,000 K^[25]. Kong et al. studied the distribution of pyrolysis gas-phase products of cross-linked polyethylene cables with ReaxFF, identifying H₂, CH₄, C₂H₆, C₂H₄, and C₂H₂ as the primary gas-phase products^[26]. Chao et al. used GC-MS and ReaxFF-MD to investigate polypropylene cables, finding that the main hydrocarbon products in the decomposition are CH₄, C₂H₄, C₃H₆, and C₂H₆^[27]. Döntgen et al. successfully deduced the reaction mechanism of high-temperature methane combustion by utilizing ChemTraYzer, and further extending ChemTraYzer to facilitate chemical kinetics studies^[28,29]. Sarah et al. analyzed the consumption of cyclohexanone using ChemTrayzer to obtain the product distribution as well as the decomposition pathways^[30].

The investigation of the effect of electric fields on pyrolysis has been undertaken by scholars using ReaxFF-MD. Zhou et al. investigated the inhibition mechanism of polycyclic aromatic hydrocarbon (PAH) formation during n-decane pyrolysis using ReaxFF-MD, finding that the electric field accelerates the cleavage reaction rate of n-decane and reduces the enthalpy change of bond cleavage^[31]. Zhou et al. examined the influence of electric fields on the pyrolysis reaction paths of JP-10 fuel using ReaxFF-MD. It elucidates that the pyrolysis reaction activation energy and molecular motion are the key factors affected by the co-effect of temperature and electric field^[32]. This provides ideas for studying the effect of the electric field on the pyrolysis of cable sheaths.

In this paper, the effect of electric field on the pyrolysis of PE, a typical cable sheath, is investigated by the ReaxFF-MD method. First, the pyrolysis products of polyethylene are investigated and verified by experimental data. Then, the effect of temperature on the generation of polyethylene pyrolysis products is explored. Furthermore, the effects of the electric field on the pyrolysis process involve the effects on pyrolysis products, reaction pathways, and major radical reactions. These findings can offer valuable insights for understanding fire characteristics and preventing similar incidents.

Based on Materials Studio, to build a long chain of PE with a degree of polymerization of 50. PE cells containing ten long chains are built by the Amorphous Cell module. The density of the system is set to 0.92 g/cm³. The PE model is subjected to five annealing cycles of 300–500 K by the COMPASS II (Condensed-phase molecular potentials for atomistic simulation studies II) force field. The system is subsequently kinetically equilibrated by the NVT system at room temperature and atmospheric pressure for 100 ps with the step size set to 0.5 fs. In order to better reflect the molecular dynamics processes of gas molecules in the PE system, the Berendsen method is used as a thermostat. Then electrostatic and van der Waals forces are respectively treated by the Ewald method and the Atom-based method. Finally, the optimized PE pyrolysis model is obtained as shown in Fig. 1.

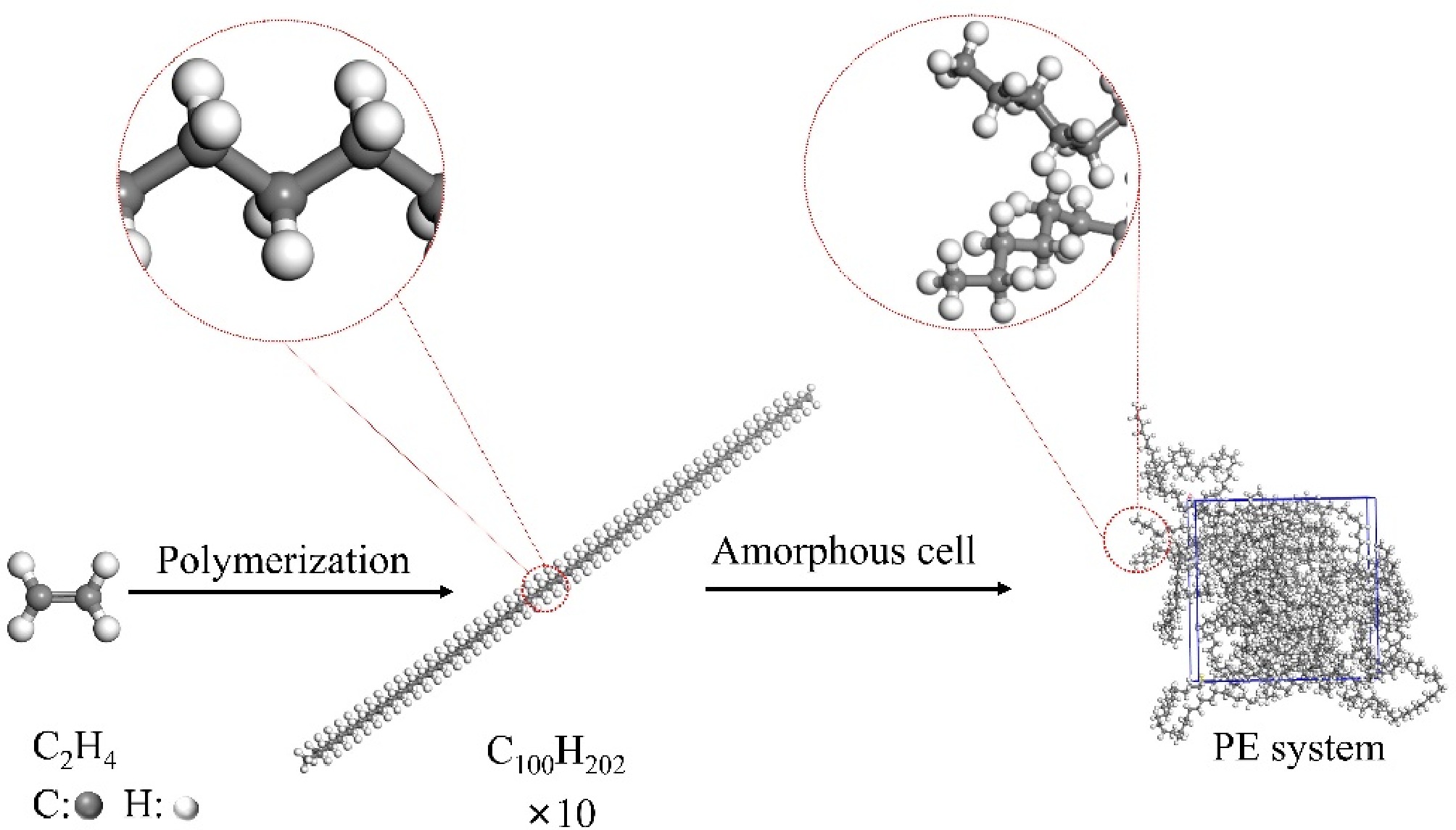

Figure 1.

PE pyrolysis model.

The PE model optimized by Materials Studio is imported into ReaxFF and subjected to a relaxation process at 5 K to avoid bond link among molecules and equilibrate the system energy. During the relaxation phase, the force field is selected to be CHOSFCIN.ff, with a total time of 50 ps and a step size of 0.25 fs^[33]. To gain deeper insight into how different temperatures and electric fields influence the pyrolysis of polyethylene cable sheaths, the electric field strength is set, taking into account the actual use of PE sheaths and with reference to the electric field gradient setting method of Zhou et al.^[31]. Molecular dynamics simulations are performed at specific temperature points (2,500, 2,700, 2,900, 3,100, and 3,300 K), and at different electric field strengths (0, 0.003, and 0.03 V/Å). It is not difficult to find that the simulated temperature is much higher than the experimental temperature, which is due to the fact that the time scale of the simulation is only in the ps level, which is much lower than that of the experimental conditions. This has been investigated in the literature, and it is found that the reaction mechanism and kinetic results obtained by high-temperature simulation are more consistent with those obtained experimentally^[34,35]. Each molecular dynamics simulation is executed for 2,000 ps with a time step of 0.1 fs, and the resulting data are averaged over three simulations of the molecular system with disparate initial states. All the above processes are simulated in molecular dynamics under an NVT system with atmospheric pressure, and NHC is used as a thermostat. The formation and breakage of chemical bonds are analyzed by the Chemtrayzer module, which in turn investigates the pyrolysis pathways and the mechanism of electric field influence on PE pyrolysis.

In this paper, the major pyrolysis particles are found to be C₂H₄, C₂H₂, H₂, C₂H₃, CH₃, CH_4, C₃H₆, C₃H_5, C₃H₄, C₃H₃, and H. Among them, C₃H₆, C₃H₅, C₃H₄, C₂H₄, and C₂H₂ are characterized by different structures as shown in Fig. 2. As can be seen in Fig. 2, only C₃H₄ exhibits isomerization in all these species, which account for a relatively small percentage of the major pyrolysis products, and ultimately C₂H₂ is produced by thermal decomposition.

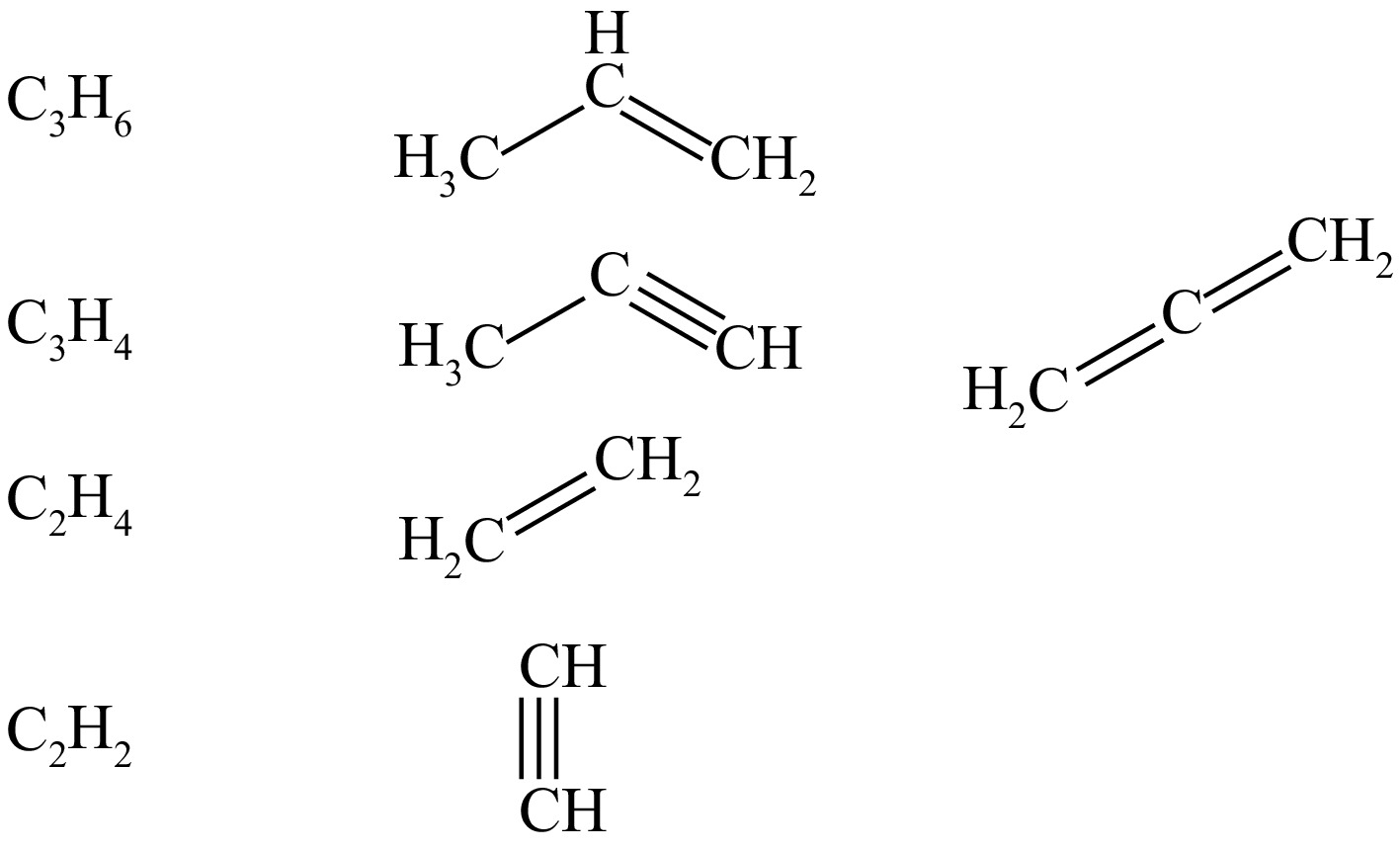

Figure 2.

Isomers of major pyrolysis products.

The change rule of the main pyrolysis species C₂H₄, C₂H₂, H₂, C₂H₃, CH₃, CH₄, C₃H₆, C₃H₅, C₃H₄, C₃H₃, and H under the condition of the temperature of 3,100 K is obtained as shown in Fig. 3. The number of the intermediate product C₂H₄ increases rapidly within the first 60 ps of the pyrolysis reaction. This is due to the homolytic cleavage of the C-C and C-H bonds in the long-chain molecules of polyethylene, resulting in the production of a large number of alkyl radicals. Long-chain alkyl radicals tend to break at the second carbon (β-carbon) from the radical position. The break produces a C₂H₄ and a new, shorter alkyl radical. Also, hydrogen transfer within the molecule increases the number of C₂H₄. After 60 ps, the number of C₂H₄ shows a significant decrease. C₂H₄ is unstable at high temperatures and can be further dehydrogenated to form C₂H₂ and H₂. The β-break or hydrogen-robbing reaction may also first produce C₂H₃, a very reactive radical that can easily lose an H radical to form C₂H₂. Although acetylene has a high bond energy, its enthalpy of formation is very high, and its high entropy value at high temperatures makes it a dominant product. When two radicals meet and combine, sometimes instead of forming a C-C bond, the two hydrogen atoms combine to form H₂, leaving an unsaturated bond (usually a double bond). At higher temperatures, the radical site may seize the hydrogen of neighboring carbons on its own chain, generating a direct double bond and H₂ (or H radicals, but H radicals are highly susceptible to bonding to H₂). Although not as prevalent as β-fracture, it also contributes to H₂ under certain conditions. This stabilizes the number of C₂H₂ and H₂ rising cleavage occurrences near the terminal methyl group of the polymer chain. The resulting CH₃ can undergo a hydrogen capture reaction to form CH₄. Observation indicates that the C3 (C₃H₆, C₃H₅, C₃H₄, and C₃H₃) products exhibit a tendency to increase and then decrease. Furthermore, the higher the H content, the more these products disappear completely first. This suggests that the C3 and above particles are unable to exist under these conditions and decompose into products with a smaller number of carbons. The final products are therefore H₂, C₂H₂, C₂H₄, and a small amount of CH₄.

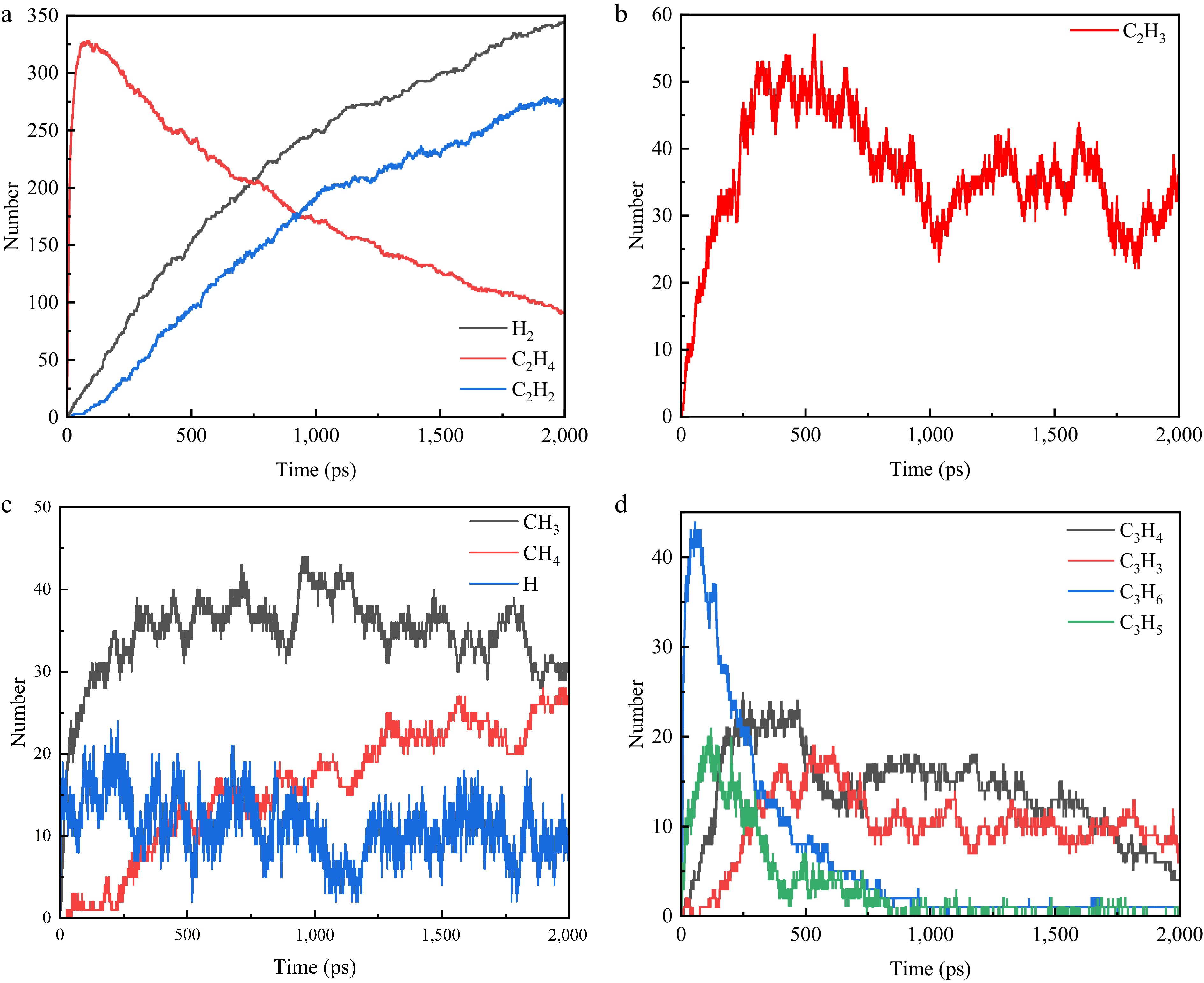

Figure 3.

Variation curve of the number of main pyrolysis particles (total number of isomers) with time. (a) C₂H₂, C₂H₄, H₂. (b) C₂H₃. (c) CH₃, CH₄, H. (d) C₃H₆, C₃H₅, C₃H₄, C₃H₃.

To verify the accuracy of the theoretical calculations, the PE sheath material of a high-voltage cable (YJLW03Z-64/110 KV) is selected for pyrolysis experiments, and the gas products are examined using oil chromatography. Literature is reviewed to determine the major product of PE sheath decomposition, and a standard gas is selected to calibrate the oil chromatogram based on this major product. Since the background gas for the pyrolysis experiment is nitrogen, nitrogen is selected as the background gas for the assay. After completing the calibration, 1 mL of pyrolysis gas is injected for testing and subsequently analyzed for the type of gas and its content. The experimental temperature, experimental atmosphere, airflow purging rate, and temperature increasing rate are set to 30−800 °C, nitrogen, 50 mL/min, and 10 °C/min, which are respectively. As shown in Fig. 4, the detected gas products mainly consist of CH₄, C₂H₄, H₂, and C₂H₂, and it is obvious that the experimental products are consistent with the simulation products.

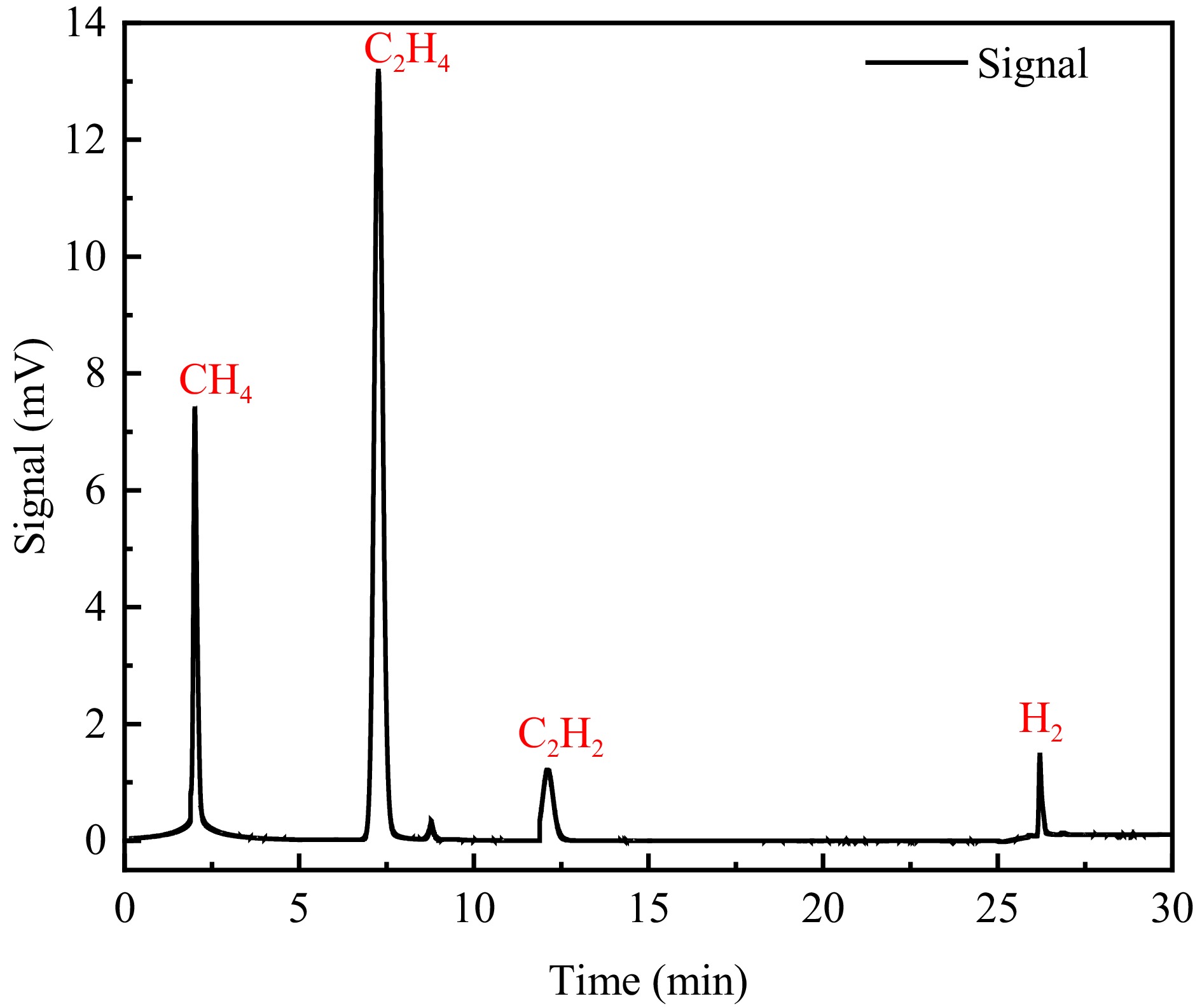

Figure 4.

PE pyrolysis components.

Effect of temperature on pyrolysis

To study the effect of different temperatures on the pyrolysis of the cable sheath, the changes in the number of major products at five temperatures, 2,500, 2,700, 2,900, 3,100, and 3,300 K, are calculated (Fig. 5). The result indicates that the total number of pyrolysis products increases significantly with the temperature. As illustrated in Fig. 5a–c, the alterations in C₂H₄, C₂H₂, and H₂ are minimal at 2,500 and 2,700 K, suggesting that temperature exerts a negligible influence on the pyrolysis products at low temperatures. Figure 5d shows that CH₄ varies less between 2,700 and 3,300 K. In comparison, the number is significantly lower at 2,500 K, indicating that less CH₄ is generated at low temperatures, and its number increases significantly and stabilizes beyond a certain temperature. As shown in Fig. 5e, the trend of the number of C₃H₆ is approximately the same as that of C₂H₄. This indicates that C₃H₆ is also an intermediate product, but it is completely decomposed as the temperature increases. Figure 5f reveals a significant increase in the concentration of H atoms with increasing temperature, suggesting a further increase in the vigor of the reaction. This indicates that the breakage of PE long chains is accelerated at high temperatures, generating a large number of substituents (e.g., C₂H₃ and C₂H₅) as well as H atoms, which leads to an increase in the total number of molecules in the system.

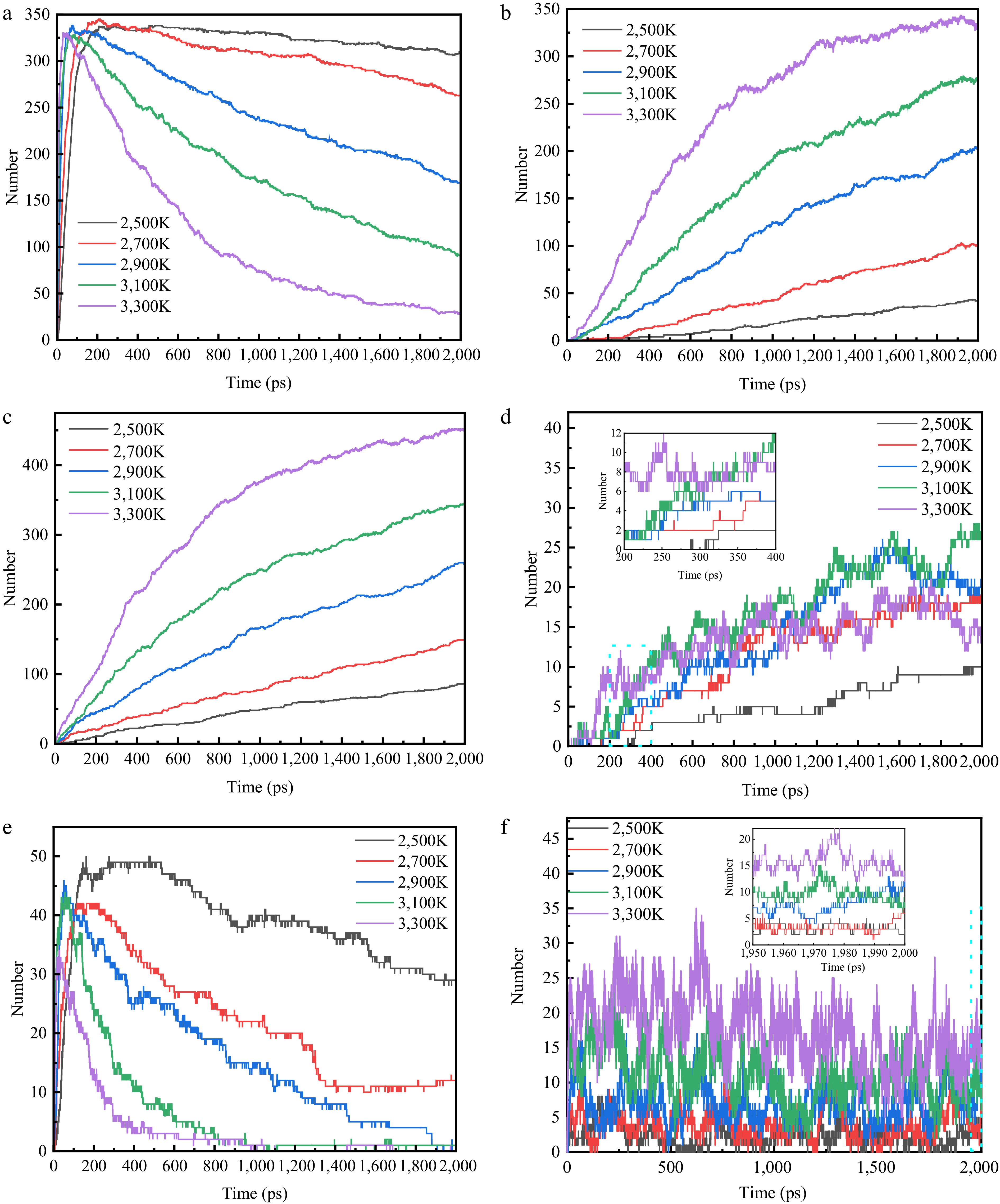

Figure 5.

Plot of changes in the amount of important pyrolysis products at different temperatures. (a) C₂H₄. (b) C₂H₂. (c) H₂. (d) CH₄. (e) C₃H₆. (f) H.

Effect of electric fields on pyrolysis

To investigate the effect of electric field on the kinetic properties of PE pyrolysis, a first-order kinetic approach is used^[36].

The concentration of PE is represented by its molecular number, and k is obtained from a linear fit of Nt and t, that is:

where, N0 denotes the initial number of reactants, k is the reaction rate constant, t denotes the reaction time, and Nt denotes the number of reactants at time t.

Fitting Eq. (1) yielded the rate constants of three types of electric field (0, 0.003, and 0.03 V/Å) at different pyrolysis temperatures, as shown in Table 1. The reaction rate constant increases with temperature, indicating an accelerated reaction process due to the heightened reaction rate in the intermediate reaction stage with increasing temperature.

According to the Arrhenius equation, the relationship between k and reaction kinetic parameters can be obtained, as shown in Eq. (2)^[37]:

where, A denotes the pre-factor, R is the gas constant, Ea denotes the activation energy, and T denotes the thermodynamic temperature.

The values of Ea are obtained by fitting Eq. (2). The Arrhenius fit for PE pyrolysis is shown in Fig. 6. Ea for 0, 0.003, and 0.03 V/Å pyrolysis processes are 298.22, 297.47, and 279.27 kJ/mol, respectively. This suggests that the applied electric field reduces Ea during PE pyrolysis. This may be due to the fact that the applied electric field increased the reactive groups within the pyrolysis system.

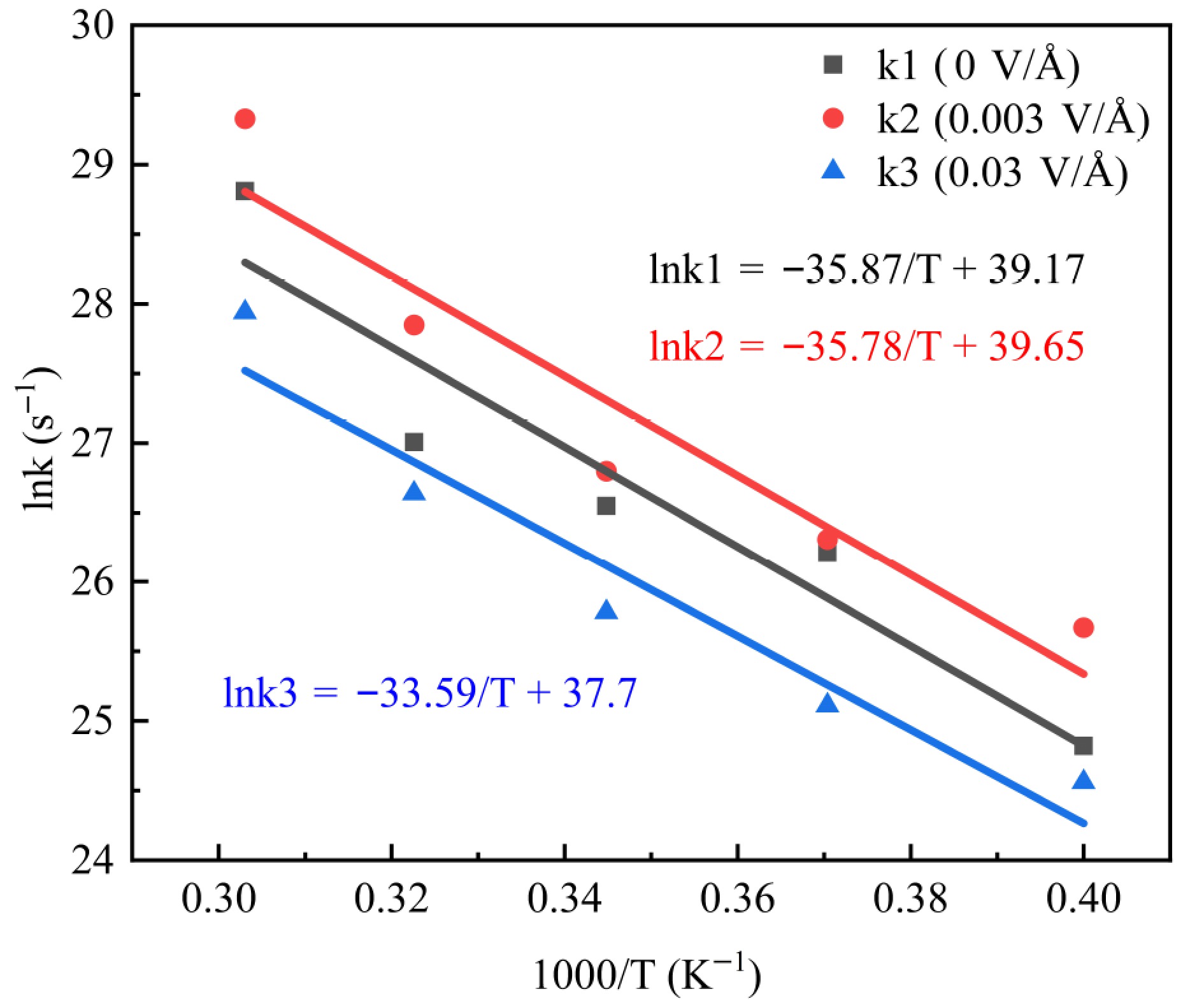

Figure 6.

Kinetic fit of PE pyrolysis rate constant versus temperature.

In order to further investigate the effect of electric field on the pyrolysis process, the variation of the amount of pyrolysis products under three electric field conditions, namely 0, 0.003, and 0.03 V/Å, is studied at a constant temperature (3,300 K), and the results are shown in Fig. 7. As illustrated in Fig. 7a–c, no significant change in the number of C₂H₄, C₂H₂ and H₂ occurs under the influence of the electric field. This indicates that the effect of the electric field on the three final products is not obvious. As shown in Fig. 7d, the amount of CH₄ under electric field conditions increases significantly after 800 ps. The amount of CH₄ at 0.003 V/Å increases rapidly from 800 to 1,500 ps and then stabilizes, while the amount of CH₄ at 0.03 V/Å always shows an increasing trend. However, due to the small amount of CH₄ produced, it is more prone to chance inaccuracy. To investigate changes in the amount of CH₄, changes in the amount of its intermediate products are analyzed. The variation in the number of its major intermediates, CH₃, CH₂, C₂H₄, and C₂H₃, has been studied, and it has been found that conversion of other intermediates (C₄H₉, C₃H₆, C₃H₅, C₃H₄, CH₅, etc.) to CH₄ occurs in the presence of an electric field. The number of decompositions of CH₄ into CH₂ increases from 17 to 22. There are some differences between the different electric fields, with no significant change in the amount of CH₃ present at 0.003 V/Å, but the conversion of CH₃ to CH₄ increases from 21 to 28. At 0.03 V/Å, the amount of CH₃ increases from 31 to 40, resulting in an increase in the amount of CH₄ produced. When the system reacts up to 800 ps, there are sufficient particles present in the system that can be converted to CH₄, so that there appears to be some increase in the number of CH₄ under the electric field.

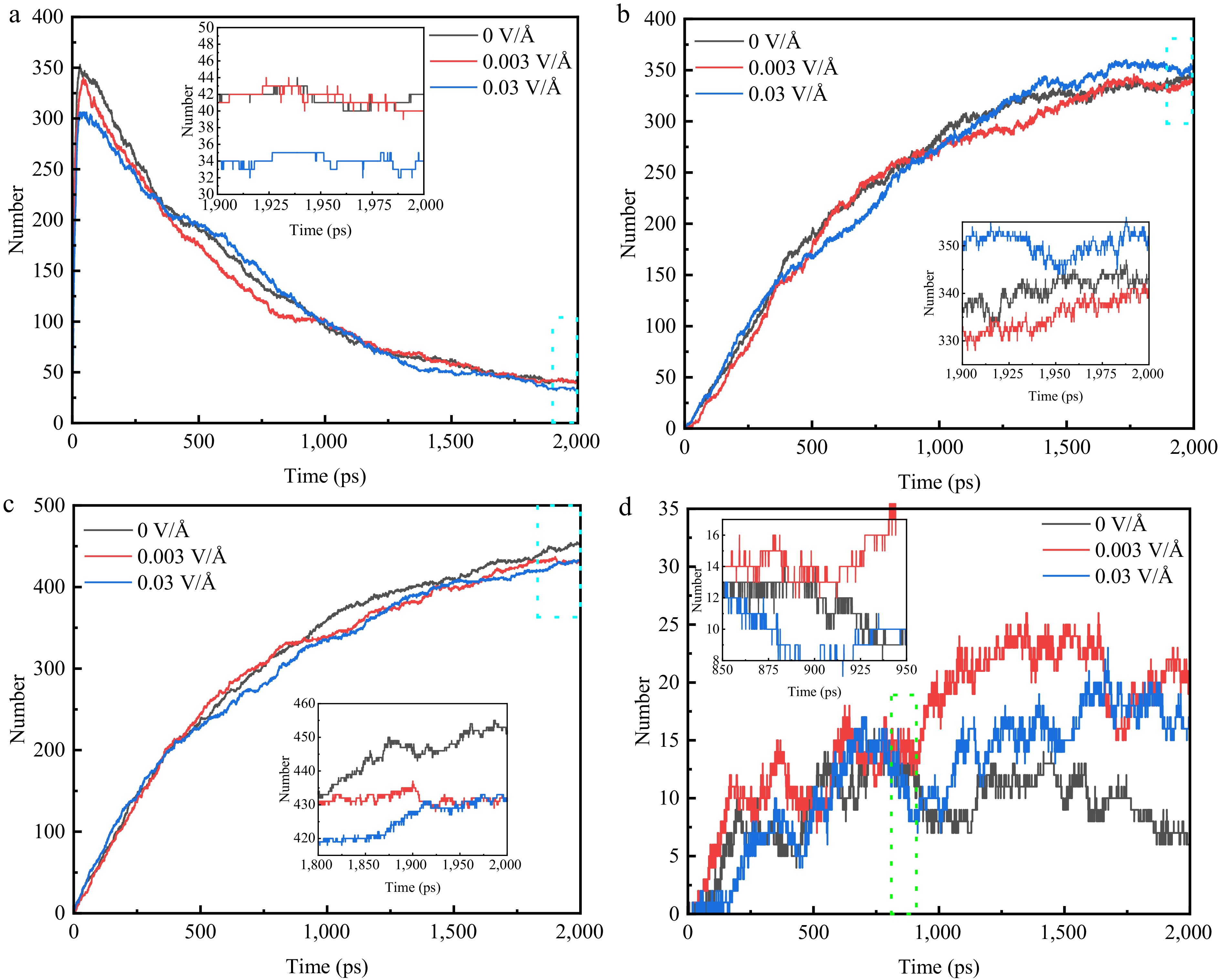

Figure 7.

Variation of the number of major pyrolysis products under different electric fields at 3,300 K. (a) C₂H₄. (b) C₂H₂. (c) H₂. (d) CH₄.

To better illustrate the reaction network during pyrolysis, we identified and numbered 20 pivotal reactions involving the major products—including both their formation and consumption. These numbered reactions (R1–R20) are detailed in Supplementary Table S1. To explore the influence mechanism of the electric field on polyethylene pyrolysis, the main reactions involving final products (number of net reactions ≥ 10) are analyzed and plotted as shown in Fig. 8. The number of these reactions is the total number for the entire process of pyrolysis. As illustrated in Fig. 8, the generation of C₂H₄ is predominantly attributed to the decomposition of C₃H₇, C₄H₈, C₆H₁₂, C₈H₁₆, and C₁₀H₂₀. Combined with the C₂H₄ change curves in Fig. 3, it can be seen that there are more types of reactions to generate C₂H₄, but the number of occurrences of each reaction is relatively less. It has been shown that R4, R5, R6, R7, and R9 are inhibited under the influence of an electric field, resulting in the reduction of C₂H₄. On the one hand, the electric field increases the dipole moment of the molecule, making the angle to the dipole moment increase. On the other hand, due to the decrease of upstream products (e.g., C₁₀H₂₀, C₆H₁₂), which in turn leads to the decrease of downstream products (C₈H₁₆, C₄H₈), the reactions R4−R9 are inhibited.

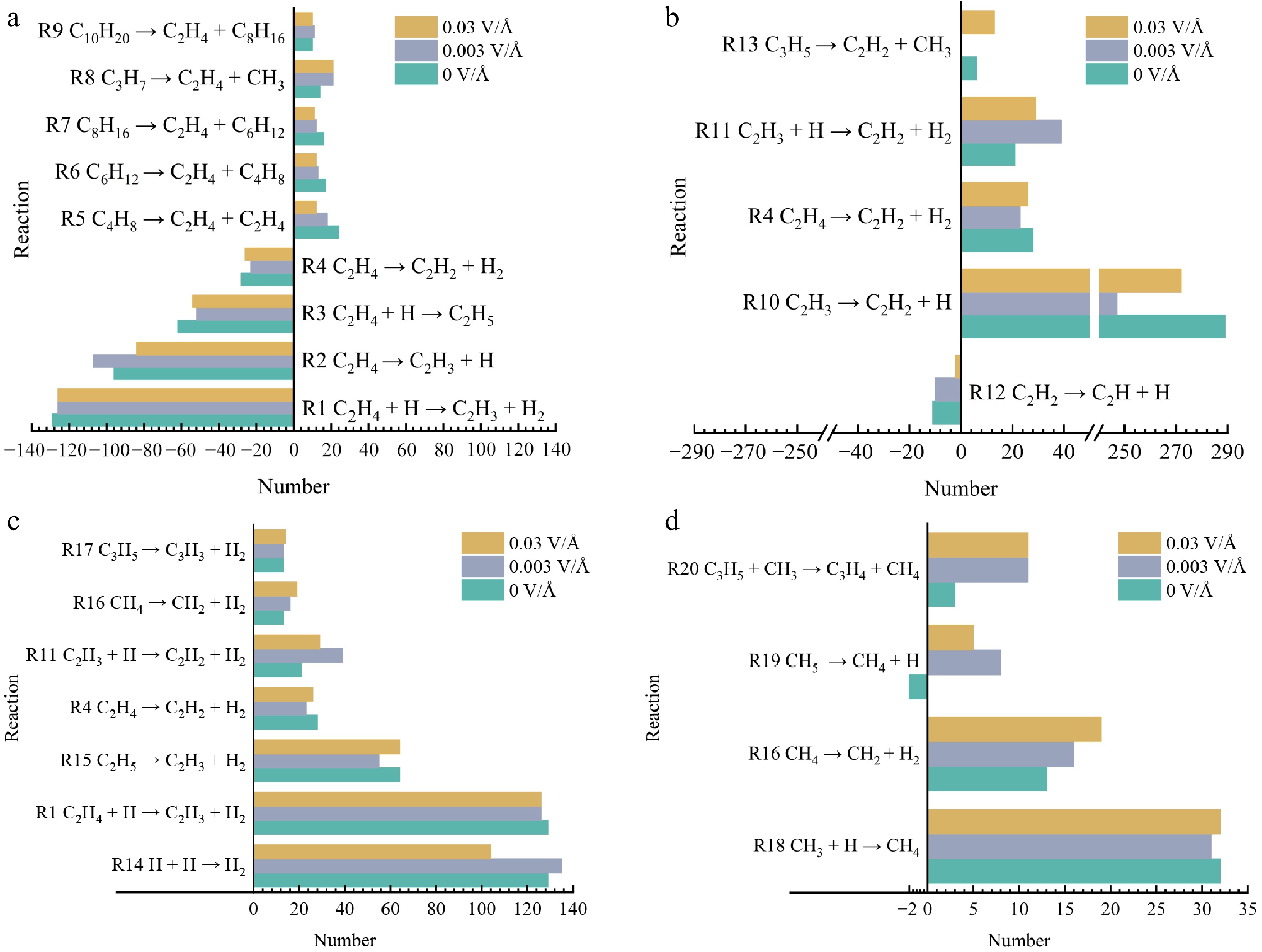

Figure 8.

Major reactions involving major pyrolysis products at different electric fields. (a) C₂H₄. (b) C₂H₂. (c) H₂. (d) CH₄.

This inhibition enhances with increasing electric field strength, which in turn leads to a negative correlation between the C₂H₄ peak and the electric field strength. C₂H₃, C₂H₂, C₂H₅, and H₂ are generated through R1, R2, R3 and R4. Most of the C₂H₃ is converted to C₂H₂ through R10. Under 0.003 V/Å, R1, R3, R4, and R10 are inhibited and R2 is promoted. Under 0.03 V/Å, R1, R2, R3, R4, and R10 are suppressed, which indicates that the pyrolysis of C₂H₄ is inhibited by the electric field. Under 0.003 V/Å, the hydrogen capture reactions R11 and R14 are promoted, while they are inhibited at 0.03 V/Å. This shows that the electric field affects the PE pyrolysis process by influencing the hydrogen reaction. The main reaction, R18, is less affected by the electric field. However, R19 and R20 are more affected by electric fields, especially under 0.003 V/Å. This suggests that the addition of an electric field causes some particles to crack and produce CH₄. In conclusion, the type of polyethylene pyrolysis end product is unaffected by the electric field. However, the key reaction is affected, which affects the PE pyrolysis process. To further investigate the combined effect of temperature and electric field, the electric field and temperature are set to 0.003 V/Å, 2,900 K, and 3,300 K, respectively. The changes in the number of pyrolyzed molecules and chemical reactions are shown by Figs 9 and 10.

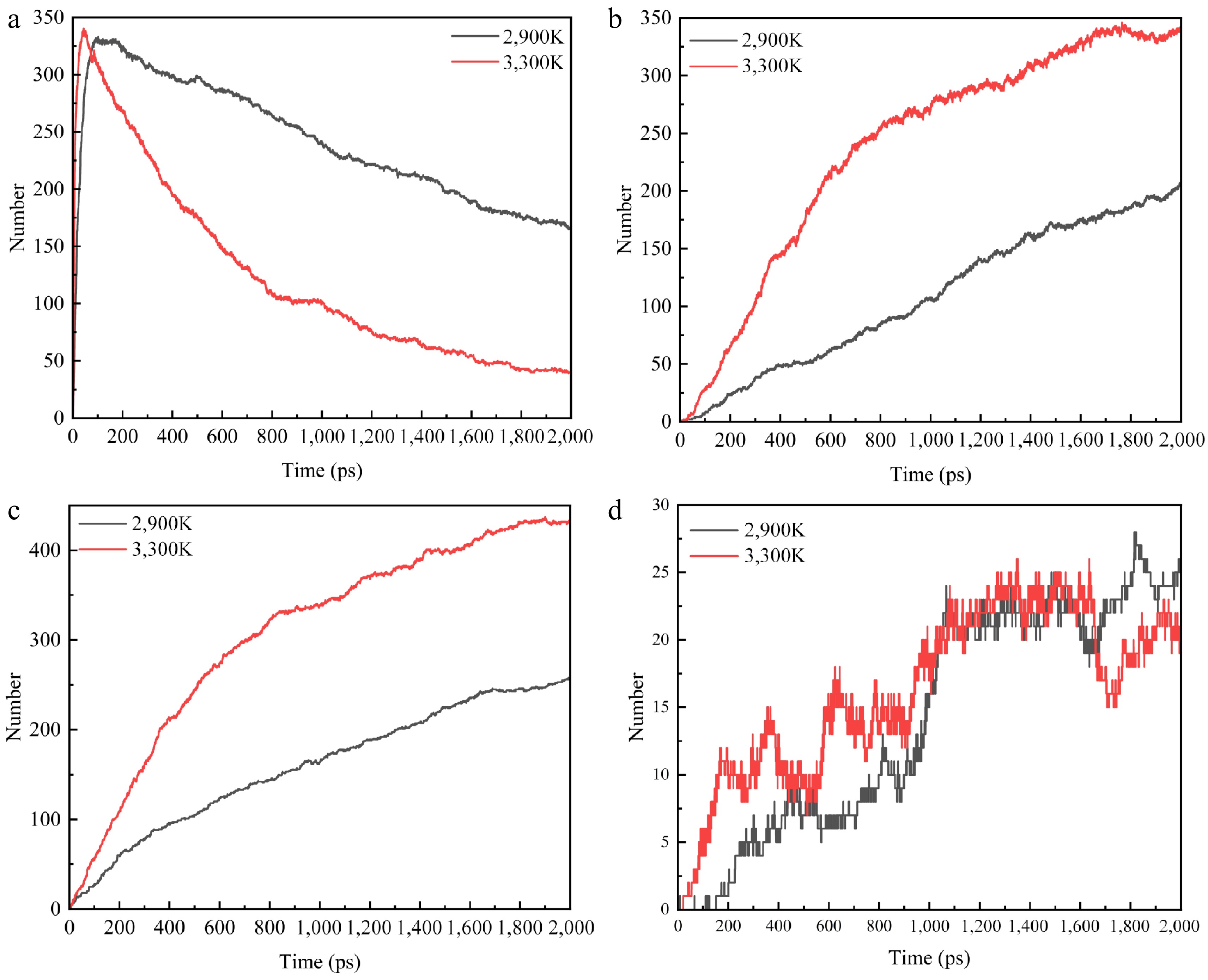

Figure 9.

Plot of changes in the number of pyrolyzed molecules at 2,900 and 3,300 K for specific electric fields. (a) C₂H₄. (b) C₂H₂. (c) H₂. (d) CH₄.

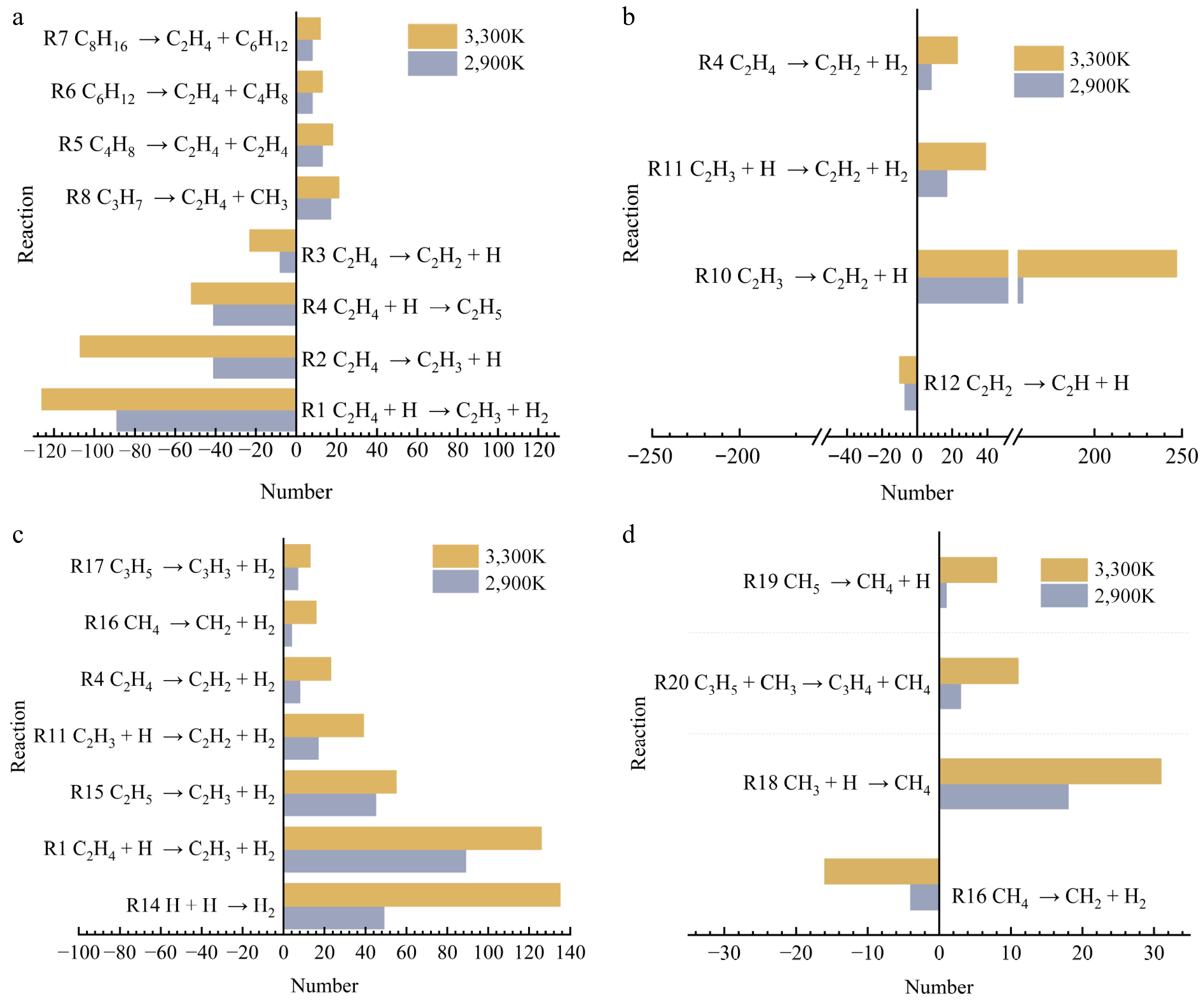

Figure 10.

Plot of the number of major reactions at 2,900 and 3,300 K for specific electric fields. (a) C₂H₄. (b) C₂H₂. (c) H₂. (d) CH₄.

As shown in Fig. 9 at 0.003 V/Å, elevated temperatures significantly increase the yields of C₂H₄, C₂H₂, and H₂. This enhancement occurs because the electric field reduces the activation energy barrier for pyrolysis, facilitating chemical bond cleavage and thereby amplifying the temperature sensitivity of the reaction. In order to analyze the combined effect of electric field and temperature, the percentage of the main reaction products (C₂H₂ and H₂) main reaction is calculated. The percentages of C₂H₂ generated by R10 and R11 are 77.56% and 8.29% (2,900 K), and 72.96% and 11.50% (3,300 K). The percentages of H2 generated by R1, R11, R14, and R15 are 29.23%, 9.05%, 31.32%, and 12.76% (2,900 K), and 35.18%, 6.72%, 19.37%, and 21.74% (3,100 K), respectively. All reaction pathways accelerate under these conditions, though with notable selectivity shifts-some increase proportionally while others decrease. This temperature dependence originates from heightened molecular thermal motion that increases collision frequency and provides activation energy. During PE decomposition, abundant free radicals generated at high temperatures undergo electric field-directed migration. This directional movement alters: (1) molecular collision probabilities, (2) electron density distributions, and (3) radical reaction pathways governing volatile product formation. Furthermore, the field enhances pyrolysis through dual mechanisms: accelerating chain reactions by increasing radical concentration, and reducing activation energies while inducing controlled molecular orientation^[32].

Mechanisms of influence of electric fields

As illustrated in Fig. 11, the energy changes during pyrolysis vary with the applied electric field. It can be seen that the electric field causes the total energy of the pyrolysis system to decrease, which leads to a decrease in intermolecular potential energy. This suggests that the electric field leads to an increase in the intermolecular distance, which weakens the intermolecular force. The frequency of intermolecular collisions decreases, and partial reactions occur less frequently^[32]. In the presence of an electric field, the positive and negative charges in the molecules move away from each other, thus increasing the dipole moment. When the angle between the direction of the electric field and the dipole moment is small, the electric field promotes the reaction, and when the angle between the two is large, it produces inhibition^[38]. Therefore, different electric fields will have different effects on the same reaction. For example, for R2, the number of reactions occurring increases significantly at 0.003 V/Å, but decreases at 0.03 V/Å instead. This indicates that at 0.003 V/Å, the reaction is promoted by a smaller angle between the electric field direction and the dipole moment, and is inhibited by a larger angle between the electric field direction and the dipole moment at 0.03 V/Å. In addition, the electric field can affect the selectivity of the reaction and the amount of product produced. Using C₂H₂ as an example, at 2,000 ps, the number of C₂H₂ is approximately the same for all three conditions. However, the electric field affected the number of reactions, reducing the share of the core reaction R10 from 84.75% to 72.43% (0.003 V/Å) and 77.49% (0.03 V/Å). At the same time, the share of hydrogen extraction reaction R11 increased from 5.98% to 11.44% (0.003 V/Å) and 8.26% (0.03 V/Å). It is not difficult to find that the effect of the electric field on pyrolysis is multidimensional; firstly, the electric field affects the total energy of the pyrolysis system, and secondly, it can affect the number of times certain reactions take place, which creates selectivity for the reaction and thus affects the pyrolysis process.

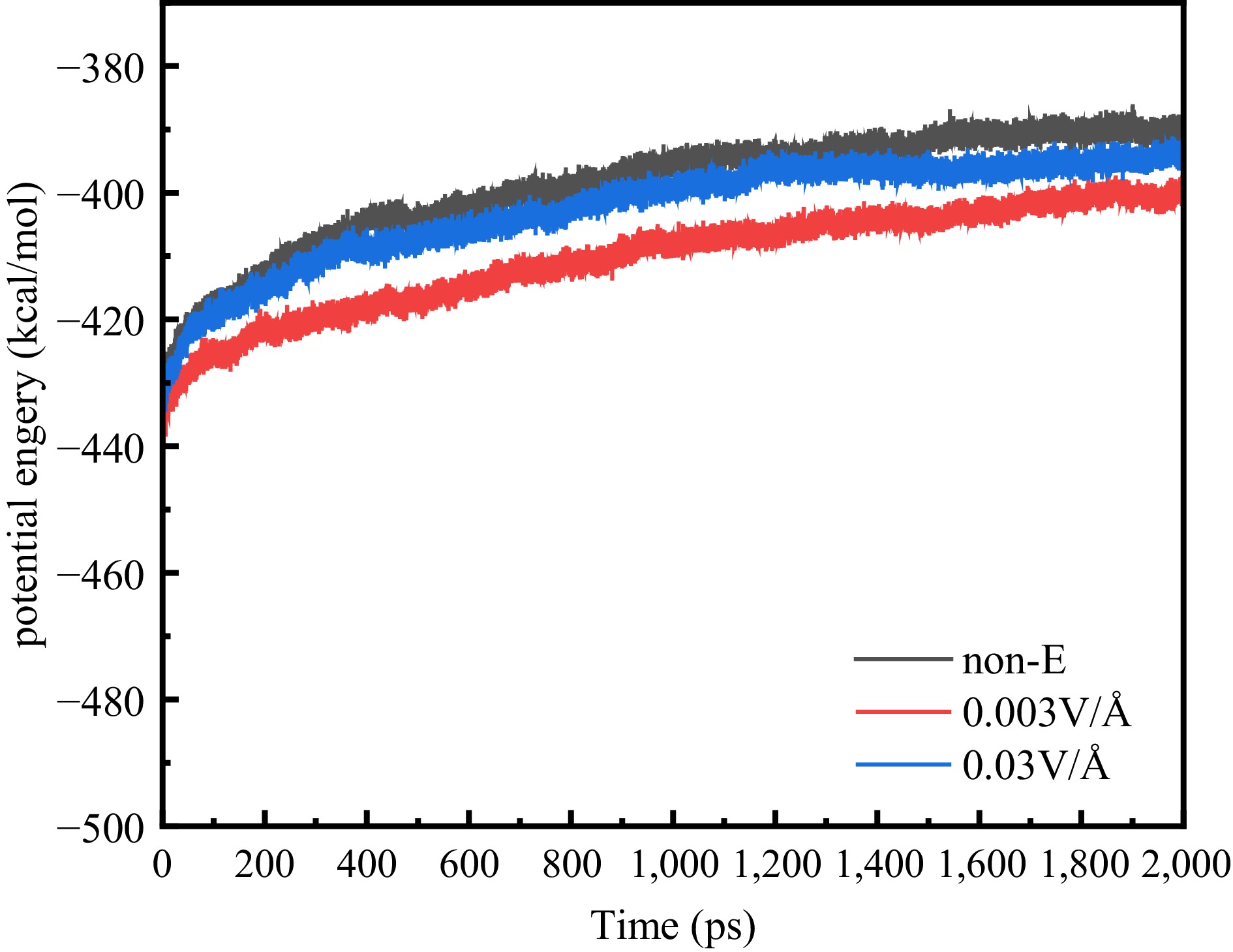

Figure 11.

Potential energy at different electric fields.

Pyrolysis product generation pathway

In order to study the main pathways of PE pyrolysis and the effect of the electric field, Supplementary Table S2 is plotted. As shown in Supplementary Table S2, pyrolysis of PE rarely produces ethylene C₂H₄ directly. Instead, it mainly produces large molecules such as C₃₅H₇₁, C₆₅H_131, C₃₂H₆₅, and C₆₈H₁₃₇ through the decomposition process. These larger molecules are further decomposed into smaller particles, and finally, C₂H₄ is generated. This finding suggests that PE pyrolysis is a multi-step decomposition process involving the generation and further decomposition of multiple intermediates. These reaction processes are accidental, and there is no obvious trend. At 0 V/Å, PE is mainly pyrolyzed by C-C single bond fracture. A simplified schematic of a potential decomposition pathway for PE to C₂H₄ is presented in Supplementary Fig. S1 to illustrate the process. However, under the condition of an electric field, PE will break the C-H bond and generate an H radical. This indicates that the electric field reduces the reaction energy barrier of PE initial pyrolysis or increases the energy of PE initial pyrolysis, which causes the C-H bond to break. C-H breaking increases the number of H radicals in the system. H radicals are the reactive radicals in pyrolysis systems and can make the pyrolysis system more reactive.

At 100 ps, the main species in the system are C₂H₄, C₂H₅, C₂H₃, C₂H₂, CH₄, CH₃, H₂, and H radicals. Some of these species are more active, such as the H radical. It acts as a bridge for reactions throughout the system, reacting with most particles and promoting inter-particle transformations. In general, the more H radicals in the system, the more violent the reaction in the system. After 100 ps, the intermediate product C₂H₄ is the dominant reactant. Therefore, the main pyrolysis pathway is plotted using C₂H₄ as the core reactant, as shown in Fig. 12. As shown in Fig. 12, after 100 ps, C₂H₄ is converted to C₂H₃ (71.44%), C₂H₂ (8.88%), and C₂H₅ (19.68%) by dehydrogenation and addition reactions. The conversions under electric field are 75.65%, 7.54% and 16.88% (0.003) and 72.41%, 8.97% and 18.6% (0.03). The vast majority of C₂H₅ is converted to C₂H₃ and H₂ by R15. The main source of decomposition of C₂H₂ is C₂H₃, with a percentage of 91.72% (0 V/Å), 92.56% (0.003 V/Å), and 92.04% (0.03 V/Å) for the three conditions. During the above reaction, H₂ and H radicals are generated, and the percentage of H radicals combining to generate H₂ is 28.48%, 31.11%, and 23.96%. The H radical combines with CH₃ to produce large amounts of CH₄, which is the most important source of CH₄. It is not difficult to find that the electric field affects the selectivity of the reaction, causing a change in the percentage of the reaction involved in the decomposition of C₂H₄ and the formation of C₂H₂, H₂, and CH₄.

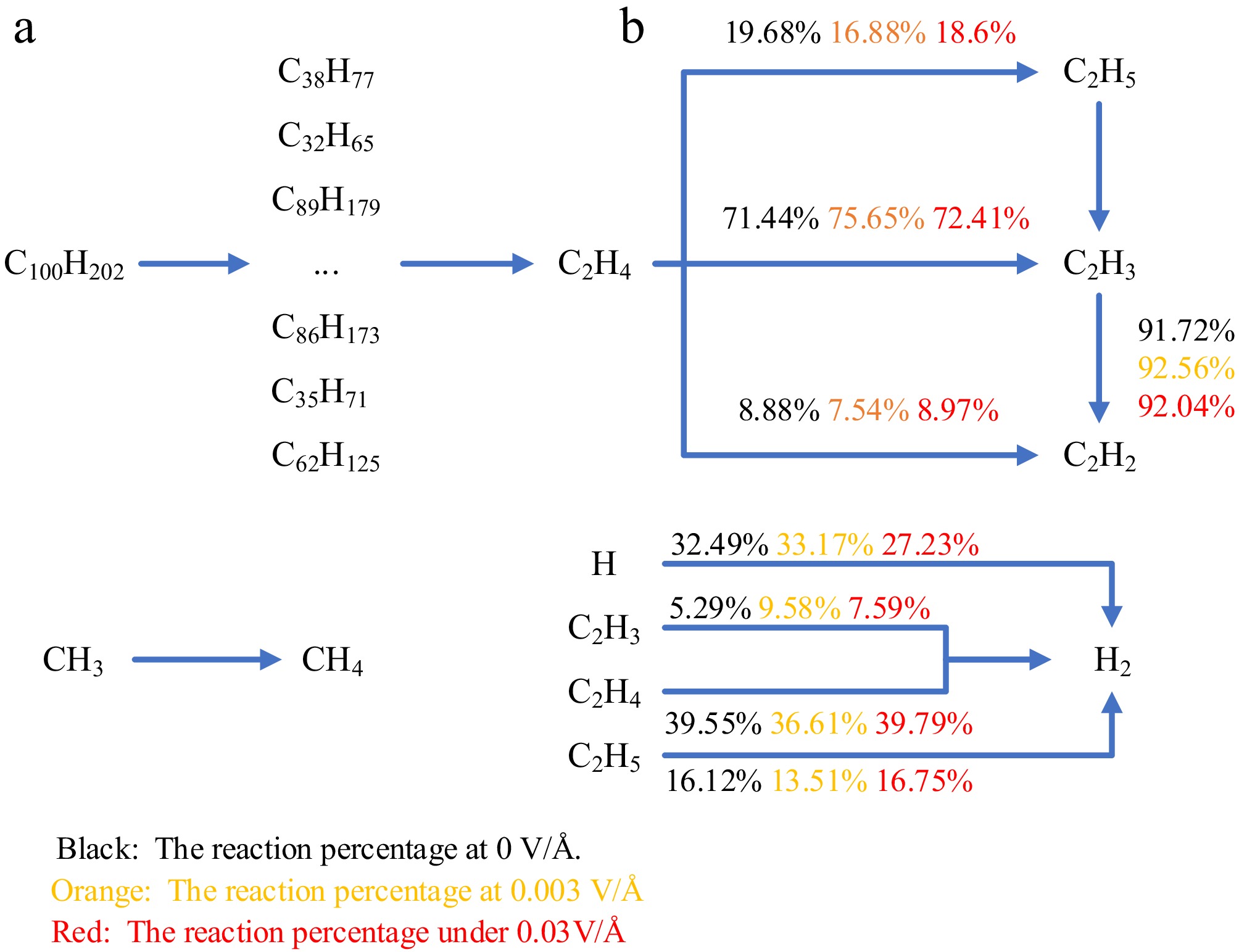

Figure 12.

Generation path of each pyrolysis product after 100 ps. (a) 0.003 V/Å. (b) Strong electric field.

In this paper, the pyrolysis process of polyethylene under different temperatures and electric fields is simulated based on ReaxFF-MD. The pyrolysis mechanism of polyethylene and the effect of the electric field on the pyrolysis of polyethylene are analyzed according to the simulation results. The pyrolysis products are then experimentally verified. The following conclusions are drawn:

(1) The final products of PE pyrolysis, as determined by theoretical calculation, consist of C₂H₄, C₂H₂, H₂, and CH₄. This result is consistent with the results of pyrolysis product experiments. The PE pyrolysis system undergoes chain decomposition to produce large amounts of C₂H₄. Subsequently, the majority of the C₂H₄ is involved as the main reactant to produce C₂H₂. Throughout the pyrolysis process, the system generates H radicals and CH₃, which react with products such as C₂H₄ to form H₂ and combine with CH₃ to form CH₄ through dehydrogenation. The key reactions are C₂H₃ → C₂H₂ + H, H + C₂H₄ → C₂H₃ + H₂, H + CH₃ → CH₄ and other reactions.

(2) Under electric field, the number of C₂H₄, C₂H₂, and H₂ do not significantly change, while the number of CH₄ significantly increased. This shows that the electric field has little effect on the types of final products and only changes the quantity of some products. The electric field shows a clear selectivity for the reactions occurring during pyrolysis. The electric field influences the pyrolysis process of PE by regulating the key reaction process. The addition of an electric field increases the distance between molecules and weakens the interaction force between molecules. The frequency of intermolecular collision decreases, and the frequency of partial reactions decreases accordingly, thus changing the reaction path and process of PE pyrolysis.
